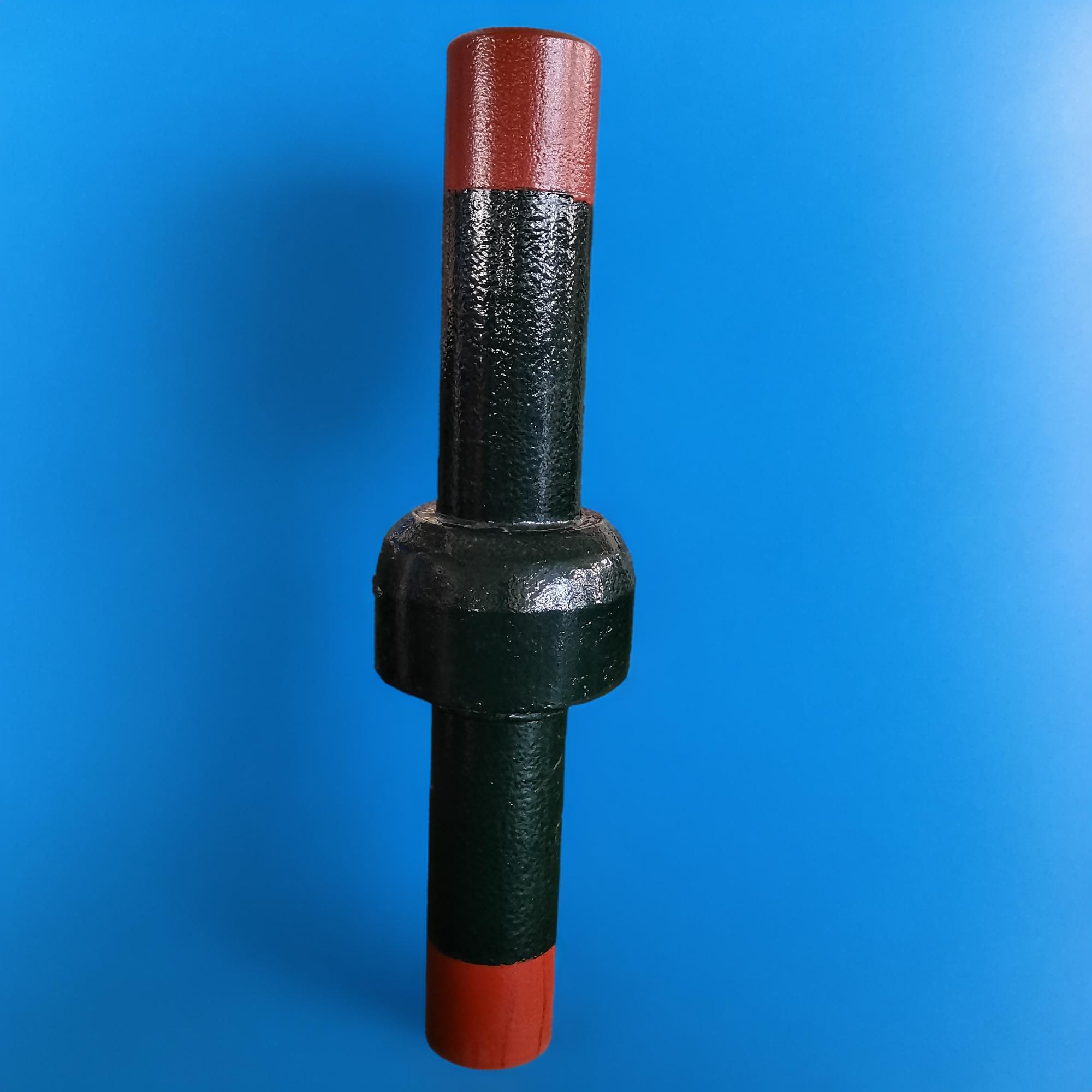

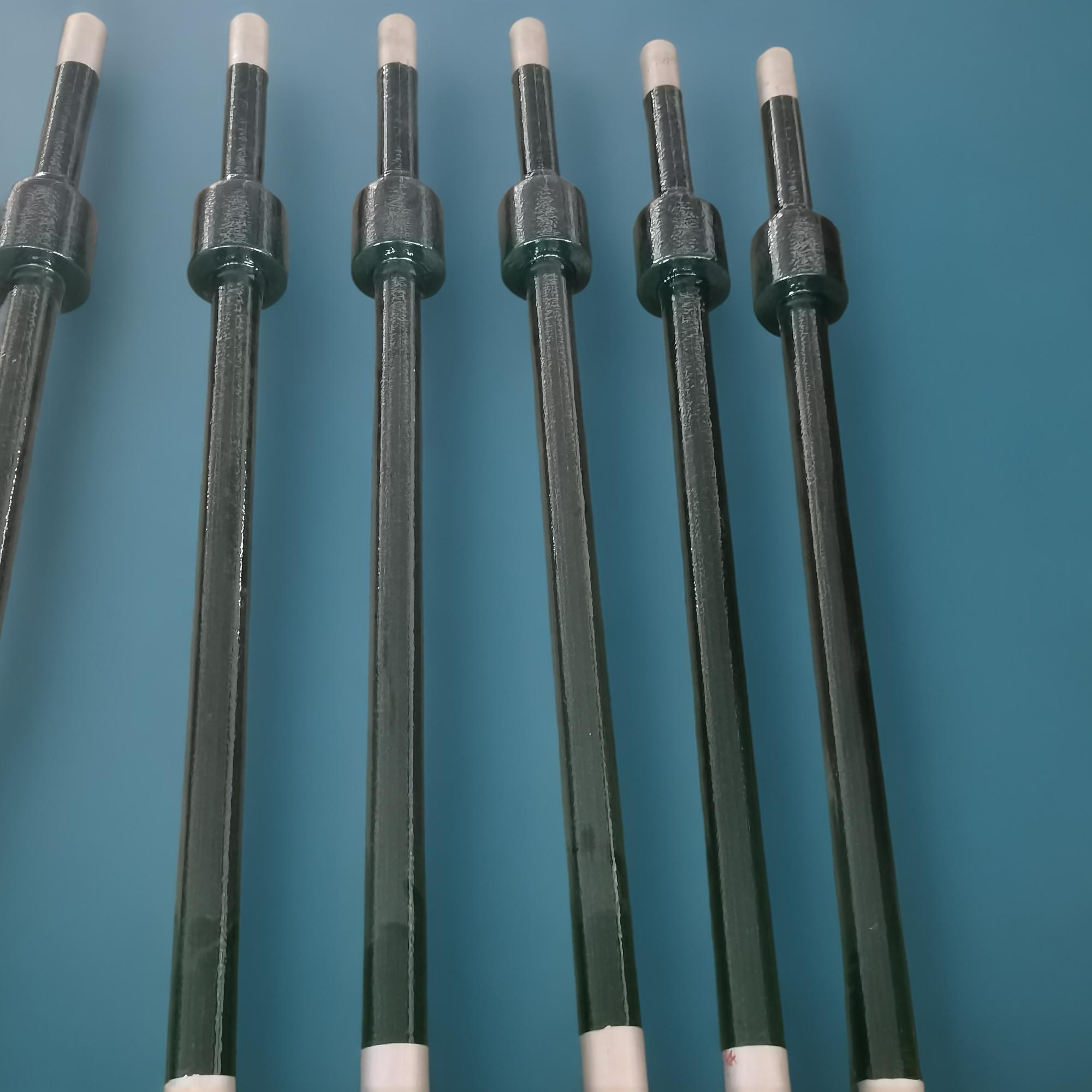

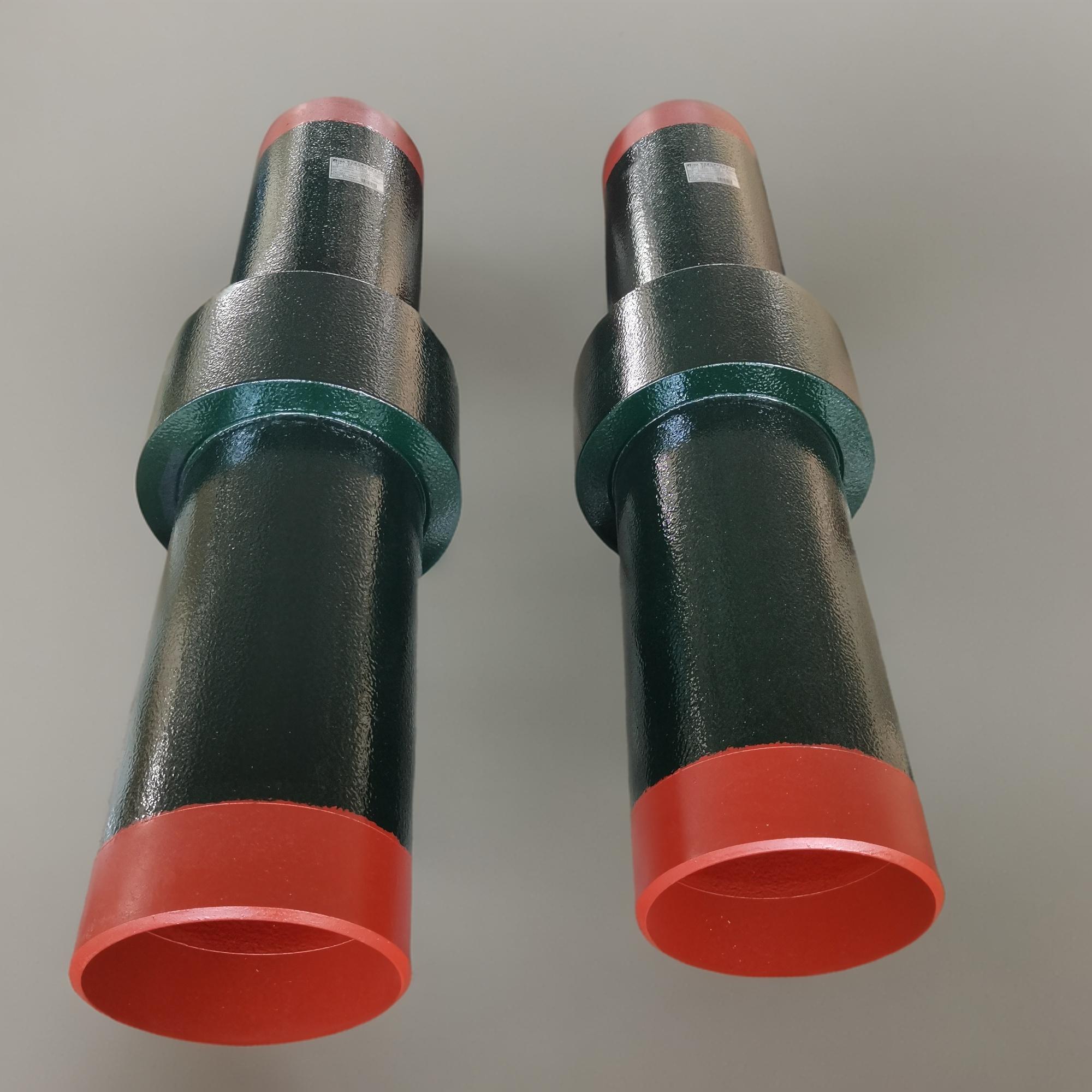

Standard Monolithic Insulating Joints Class300

Design Code:

ASME BPVC VIII Div.1 App.2; ASME B 16.9, ASME B31.3, ASME B31.4

Standard Hydro Tests Availability:

- Hydro Static Test @ 1.5 x Design Pressure

- Hydro Fatigue Test @ 1.5 x Design Pressure, 20 Cycles

- Hydro Bending Test @ 1.5 x Design Pressure Plus External Pressure Equals to 72% of SMYS

- Air Leakage Test @ Design Pressure

Optional Hydro Tests Availability:

- Torsional Test

- Vacuum Test

Standard NDT Test Availability:

- Dye Penetrant Test, Referes To ASME VIII DIV.1 appendix 8

- Radial Graphic Test, Refers to ASME VIII DIV.1 UW51

- Magnetic Particle Test, Refers to ASME VIII DIV.1 App.6

- Ultrasonic Teest, Refers to ASME VIII DIV.1 appendix 12

Standard FAT Test Availability:

- Visual & Dimensional Test

- Electric Resistance Test >20Mohm @ 1.0KV

- Dielectric Strenght Test @ 3.0KV, 60Seconds, No break down.

- Dry Paint Film Thickness Inspection, >0.3mm

- Holiday Test To Paint Film. Zero Pin Hole.

- Paint Film Adhesion Test, > 10MPa, Refers to ISO 4624-2016

Standard Packing:

- Free Fumigation Wooden Cases

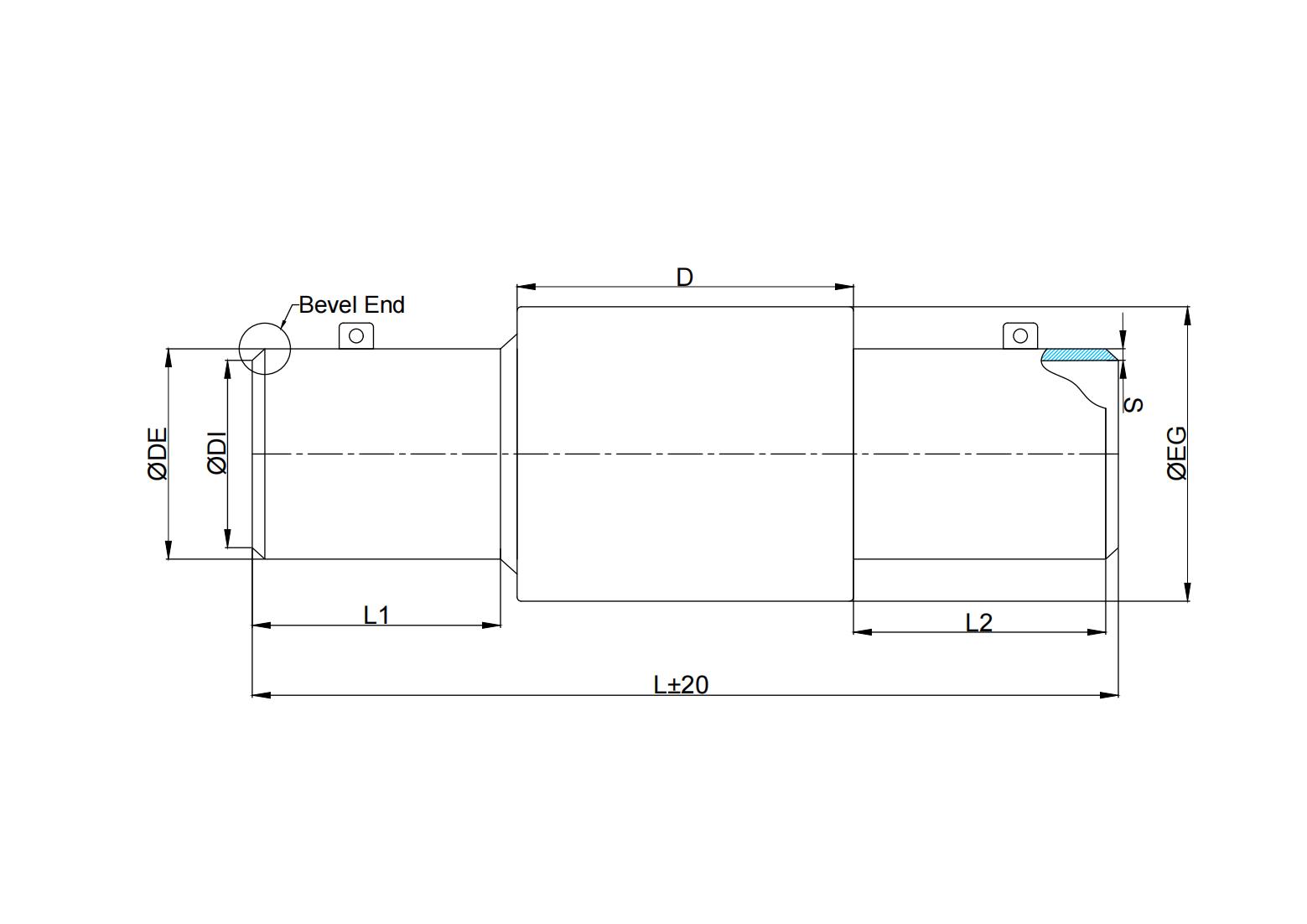

Parameters
